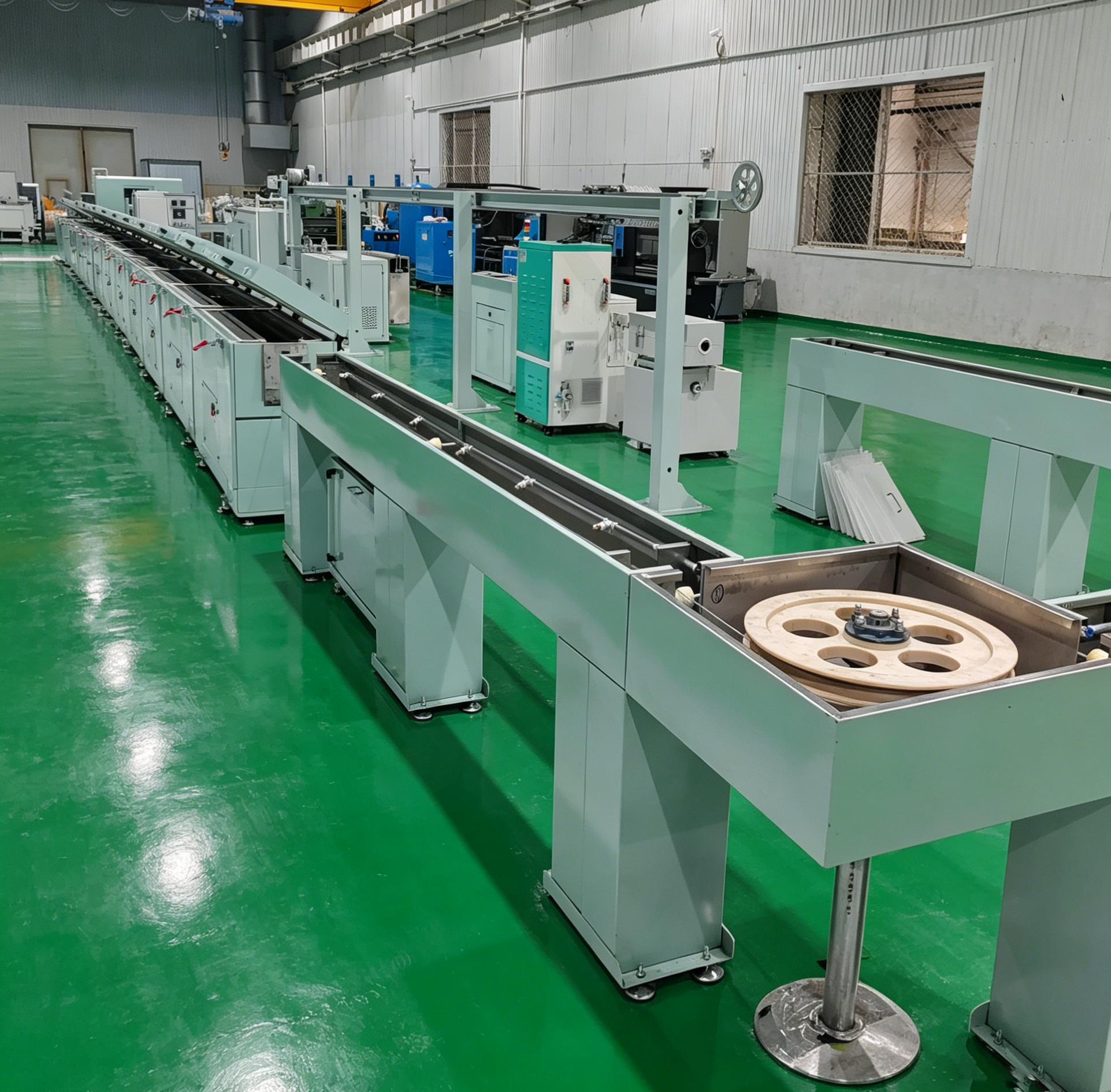

全流程无人化硅胶线缆智能生产线（交钥匙工程）
Full-Process Unmanned Silicone Cable Intelligent Production Line (Turnkey Project)
产品导语
一站式硅胶线缆智能整线解决方案，整合从原料上线到成品收卷的 14 道核心工序，实现自动放线 - 矫直 - 预热 - 挤出 - 在线检测 - 硫化 - 冷却 - 绝缘测试 - 过粉 - 缓存 - 牵引 - 布线 - 自动收线全流程无人化智能管控。采用统一 中央控制系统，所有设备毫秒级同步联动，彻底解决传统产线人工多、品质波动大、效率低、设备兼容性差等行业痛点，是特种硅胶线缆企业规模化、智能化升级的首选方案。
One-stop intelligent silicone cable whole line solution integrates 14 core processes from raw material loading to finished product winding, realizing full-process unmanned intelligent control of automatic pay-off - straightening - preheating - extrusion - online inspection - vulcanization - cooling - insulation test - powder coating - accumulation - traction - wiring - automatic take-up. Adopting a unified central control system, all equipment are synchronized at millisecond level, completely solving industry pain points such as high labor cost, large quality fluctuation, low efficiency and poor equipment compatibility of traditional production lines. , making it the preferred solution for large-scale and intelligent upgrading of special silicone cable enterprises.
核心产品优势
从放线到成品收卷全程自动化运行，仅需 1 名技术人员巡检即可实现 24 小时不间断生产，彻底摆脱对熟练工人的依赖，人工成本降低 80% 以上，同时避免人为操作失误导致的品质问题。
Fully automatic operation from pay-off to finished product winding, only 1 technician is needed for inspection to realize 24-hour uninterrupted production, completely getting rid of dependence on skilled workers, reducing labor cost by more than 80%, and avoiding quality problems caused by human operation errors.
配备激光在线测径仪 + 高频火花试验机双重在线检测系统，实时监测线缆外径、绝缘层厚度与绝缘性能，不合格品自动标记剔除；所有生产数据可追溯，实现从原料到成品的全生命周期品质管理。
Equipped with laser online diameter gauge + high-frequency spark tester dual online detection system, real-time monitoring of cable outer diameter, insulation layer thickness and insulation performance, automatic marking and rejection of unqualified products; all production data are traceable, realizing full life cycle quality management from raw materials to finished products.
所有设备采用统一中央控制系统，挤出速度、硫化温度、冷却速度、牵引速度自动匹配同步，线速 0-80m/min 无极调节，无断点连续生产，单条产线日产能最高可达 8 万米，比传统组合产线效率提升 50% 以上。
All equipment adopt a unified central control system, extrusion speed, vulcanization temperature, cooling speed and traction speed are automatically matched and synchronized, stepless adjustment of line speed 0-80m/min, non-breakpoint continuous production, the daily production capacity of a single production line can reach up to 80,000 meters, which is more than 50% higher than that of traditional combined production lines.
采用模块化设计，可根据客户产品需求灵活增减设备单元，支持医疗级、食品级、新能源高压、航天军工等全品类硅胶线缆生产；可快速切换生产配方，实现多品种、小批量柔性生产。
Adopting modular design, equipment units can be flexibly added or reduced according to customer product requirements, supporting the production of all categories of silicone cables such as medical grade, food grade, new energy high voltage, aerospace and military; can quickly switch production formulas to realize multi-variety and small-batch flexible production.
支持 MES/ERP 系统对接，实时采集生产数据、设备运行数据与品质数据，生成可视化生产报表；具备远程监控与故障诊断功能，实现工厂智能化管理。
Support MES/ERP system docking, real-time collection of production data, equipment operation data and quality data, generate visual production reports; have remote monitoring and fault diagnosis functions, realize intelligent factory management.
全线采用节能型设计，硫化箱节能 30% 以上，冷却系统采用循环水利用技术，能耗比传统产线降低 25%；全封闭结构减少粉尘污染，符合绿色工厂建设标准。
The whole line adopts energy-saving design, the vulcanization oven saves more than 30% energy, the cooling system adopts circulating water utilization technology, and the energy consumption is 25% lower than that of traditional production lines; the fully enclosed structure reduces dust pollution and meets the standards of green factory construction.
完整工艺流程与核心设备说明
自动放线设备 → 线缆矫直设备 → 智能预热烤箱 → 硅胶线缆挤出设备 → 激光在线测径仪 → 连续式高温硫化箱 → 梯度冷却水槽 → 高频火花试验机 → 静电过粉机 → 线缆缓存架 → 双轮牵引机 → 皮带牵引机 → 自动布线架 → 自动收线设备
自动放线设备：主动式张力控制，自动放线、断线自动停机，适配多种规格线盘
线缆矫直设备：多轮精密矫直，保证导体平直度，提升绝缘层包覆均匀性
智能预热烤箱：导体预热去除水分，增强硅胶与导体附着力，避免绝缘层起泡
硅胶线缆挤出设备：专用硅胶螺杆，±1℃精准控温，绝缘层壁厚均匀可控
激光在线测径仪：非接触式实时检测线缆外径，数据反馈至挤出机自动调节
连续式高温硫化箱：红外 + 热风双效加热，全域 ±1℃控温，快速均匀硫化
梯度冷却水槽：分段梯度冷却，360° 均匀降温，杜绝内应力变形
高频火花试验机：在线检测绝缘层缺陷，不合格品自动报警标记
静电过粉机：均匀涂覆隔离粉，防止线缆粘连，便于后续加工
线缆缓存架：动态储线，保证换盘时生产线连续运行不中断
双轮牵引机：高精度伺服驱动，提供稳定牵引力，保证线速恒定
皮带牵引机：柔性牵引，避免损伤线缆表面，适合大规格线缆生产
自动布线架：自动排线，保证收卷整齐，无交叉、无压线
自动收线设备：自动计米、自动换盘、自动卸卷，实现成品自动化收卷
